New CANTEK AMERICA GT760ARD | Woodworking Planers

Description

Plane your material efficiently in a single pass.

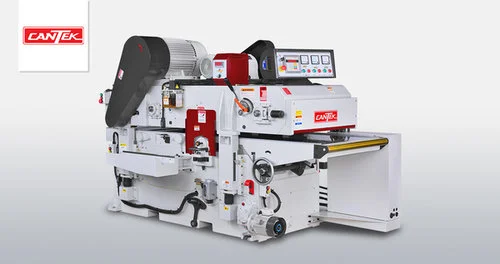

The Cantek GT760ARD 30″ Double Surface Planer has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.

Why Cantek GT760ARD 30″ Double Surface Planer?
- Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
- Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
- Heavy-duty cast-iron machine body and table for vibration free cutting

Key Advantages.
• 30”wide x 8”thickness capacity (optional 16”& 20”opening)
• Cutterheads are spiral insert type with six (6) rows of carbide inserts
• (2) driven and (1) idle bed roll for superior feeding of even difficult material
• Digital electronic thickness adjustment in INCH and MM (Inch is to 0.001”resolution)
for precise thickness control
• Swiveling control panel for more ergonomic access to machine controls
• Inverter variable speed control with feed speeds from 26 to 79 FPM
• Easy to access external handwheel adjustment of infeed bed
• Hard chromed worktable for high wear resistance
• Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways • Section chipbreaker and sectional feed roller before top cutterhead
• Rubber outfeed top roller to prevent chip marking
• Over thickness safety shut-off bar across infeed.
• Ammeter for each motor on control panel to monitor motor load
