New CANTEK AMERICA OES-509D | Woodworking Sanders

Description

Industrial oscillating edge sander for the most demanding of jobs.

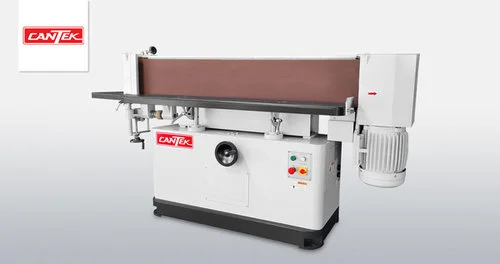

The Cantek OES509D Heavy Duty Oscillating Edge Sander is the ideal edge sander for demanding applications for production use. Equipped with a 9” high oscillating sanding belt, it is ideal for sanding drawer boxes, doors, furniture components and more. The OES509D is also equipped with dual front and rear tables which are adjustable up & down and can be tilted to 45 degrees, allowing for a wide range of applications and full utilization of the sanding belt. The dual tables also allow for two operators to be working on the machine at the same time made possible by the powerful 7.5 HP sanding motor. The adjustable and tiltable end table allows for sanding of curved components on the idle pulley. The belt oscillates up and down which helps in keeping it cool while also producing an optimum sanded finish.

Why Cantek OES509D Heavy Duty Oscillating Edge Sander ?
- Heavy-duty design with powerful 7.5HP driving motor offers high efficiency in production environments
- Front, back and side tables are adjustable in height by handwheel and can be tilted for bevel sanding operations
- Oscillating sanding belt for optimum sanding results
- Quick belt change with adjustable belt tension
- Side table can be used for sanding the curve style work pieces.

Key Advantages.
• Heavy-duty design with powerful 7.5HP or 10HP driving motor offers high efficiency in production environments
• Front, back and side tables are adjustable in height by handwheel and can be tilted for bevel sanding operations
• Oscillating sanding belt for optimum sanding results
• Quick belt change with adjustable belt tension
• Side table can be used for sanding the curve style work pieces.
• Built of heavy welded plate steel for rugged base construction and vibration free sanding
• Belt oscillation by gear reducer
• 9”x 165”or 12”x 166”sanding belt
• Front and rear sanding platens are covered with anti-friction graphite cloth
