Large capacity miter cut-off saw is built for production.

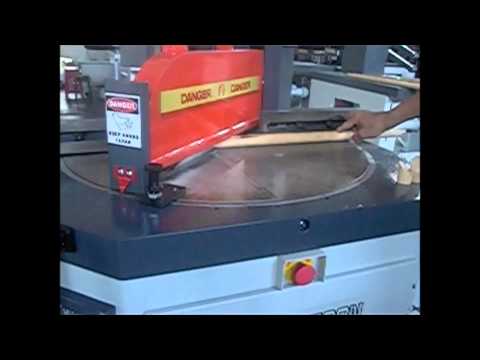

The Cantek PCM610 24” Miter Cut-Off Saw is a precision pneumatic saw designed for cutting miters up to 60o in either direction. The saw is automatically cycled pneumatically and activated by a foot switch to allow for fast positioning of the workpiece. Capable of production cutting with up to 40 cuts per minute. The cutting speed is adjustable to ensure the optimum finish result on your workpiece no matter the species or size. The rotary table runs on ball bearings to ensure effortless rotation of the blade according to the desired cutting angle. The workpiece is clamped pneumatically, and the clamping guard runs on linear guideways for smooth and fast clamping operation. The PCM610 is available with optional infeed and outfeed conveyor systems with manual stops or can be fitted with an automatic stop system such as Tigerstop for added productivity.
Why Cantek PCM610 24″ Miter Cut-Off Saw?
- 24” blade driven by powerful 10 HP motor
- Manually swivelling saw blade can cut miters up to 60° either left or right
- Quick index pin at set angles which can also be locked manually at any angle
- Pneumatic foot pedal operation with adjustable cutting stroke for optimum finish results
- Pneumatic clamping mechanism runs on linear guideways to ensure smooth and fast clamping of the workpiece
- Precision ground and polished cast iron table
Key Advantages.
• 24”blade driven by powerful 10 HP motor
• Manually swivelling saw blade can cut miters up to 60° either left or right
• Quick index pin at set angles which can also be locked manually at any angle
• Pneumatic foot pedal operation with adjustable cutting stroke for optimum finish results
• Pneumatic clamping mechanism runs on linear guideways to ensure smooth and fast
clamping of the workpiece
• Precision ground and polished cast iron table
• Safety enclosure surrounds the saw blade to ensure safe operation with reduced noise
• Infeed and outfeed fences are precision ground and are adjustable to achieve the
maximum cutting requirement
• Cabinet light included to illuminate the saw area
• Oil lubrication unit to lubricate the rotary table to ensure smooth adjustment
• High quality Schneider electrical controls
• Can be purchased with optional infeed & outfeed conveyors with manual stops or can be
easily paired with an automatic stop to increase productivity
• Optional dual push button control
