ConditionNew
New

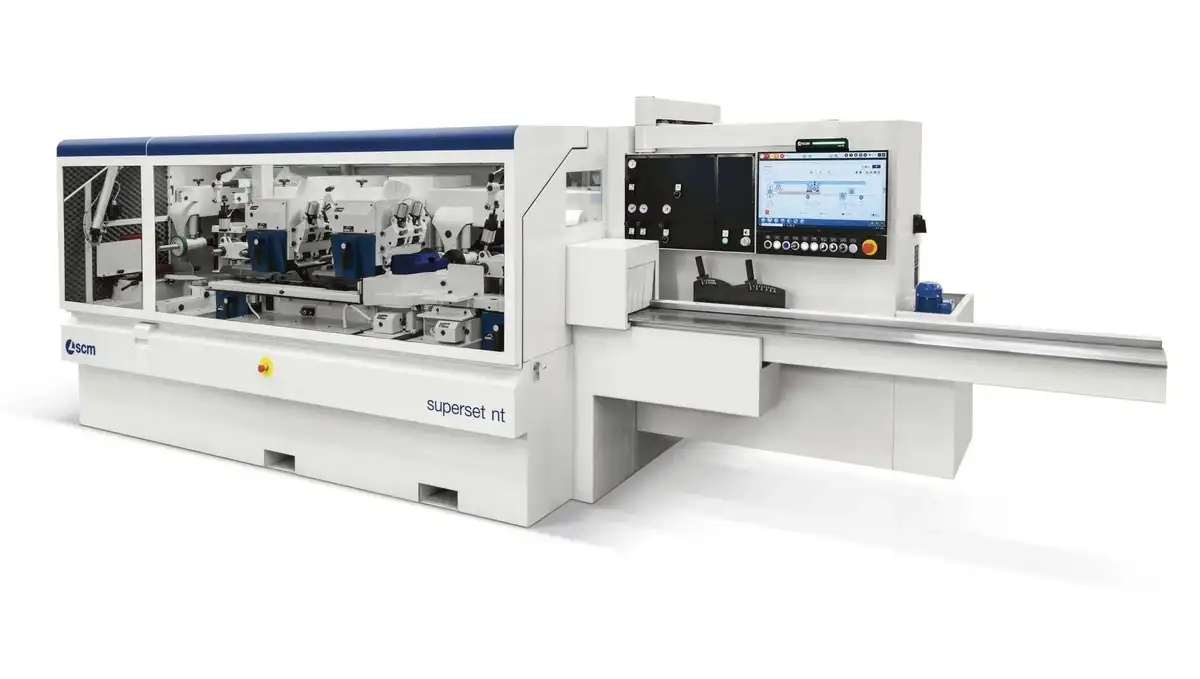

The automatic throughfeed moulder ideal for companies working multiple shifts and/or small batches.
For the production of profiles for windows, doors, stairs, beads, frames and furnishings.
The machine structure has been specific designed to enable the operator to work in ergonomic and safe conditions.
Advantages
EASE OF USE

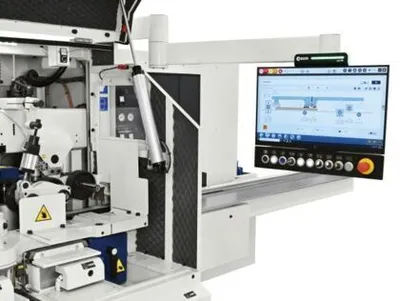

The MOBILE PC electronic control makes machine programming intuitive. Clear and precise information are always available, thanks to detailed reports.
INCREASED PRODUCTIVITY
The SET-UP system allows the operator to change tools and perform adjustments in just a few seconds, making set-up time up to 20 times faster.
CUSTOMISED COMPOSITIONS
Ten possible configurations thanks to two right vertical spindles, two top horizontal spindles, with and without universal spindle.
HIGH VARIETY OF PROFILES
The HSK technology allows downtime reduction and finish quality enhancement, with improved ergonomics for the operator.
Minimum working width
(finished section) mm 25 [15 opt.]
Maximum working width
(finished section) mm 240 [260 opt.]
Minimum working thickness
(finished section) mm 6
Maximum working thickness
(finished section) mm 120 [200 opt.]
Feed speed m/min 5 ÷ 25 [6 ÷ 40 opt.]
Motors power kW (HP) 4 (5,5) [up to 18,5 (25) opt.]
Spindles rotation speed rpm 6000 [8500 opt.]
Tool-holder spindles diameter mm 40 [50 opt.]
Axial adjustment of
vertical spindles from worktable mm 80 [75 opt. with HSK]
Axial adjustment of
horizontal spindles from right fence mm 45
Min./max. profiling tool diameter mm 100/200
Available units n. 4 ÷ 8
