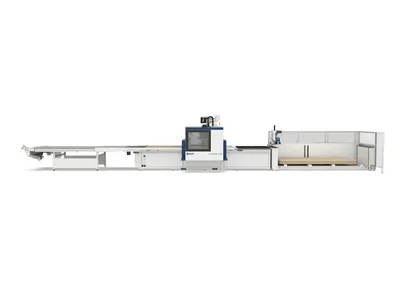

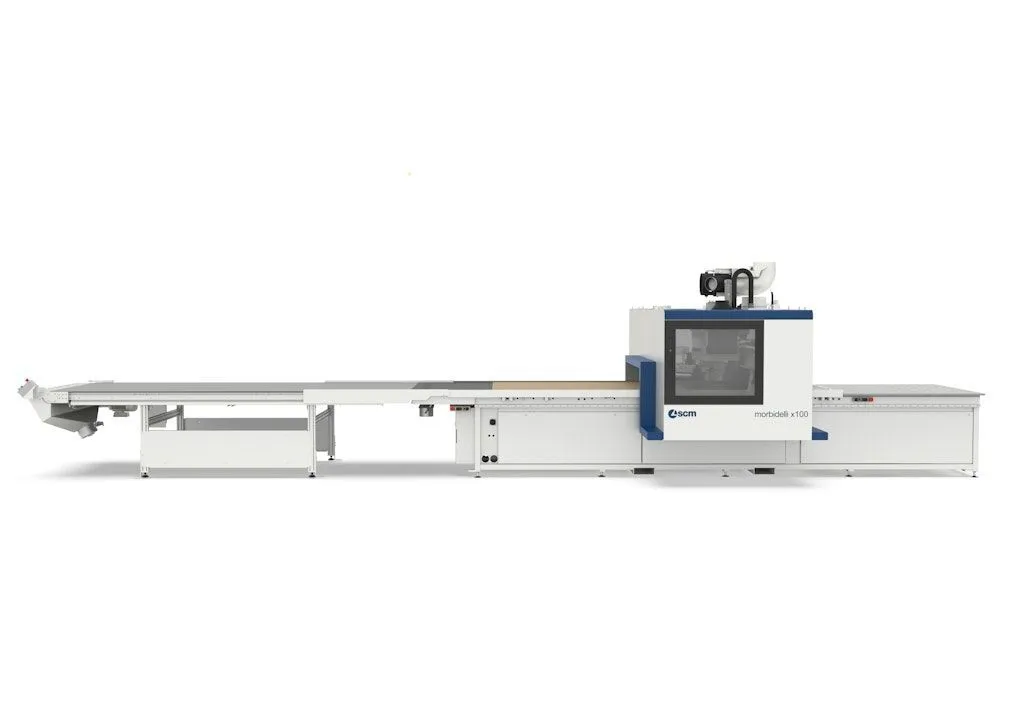

New SCM MORBIDELLI X100 SPECS AND OPTIONS | CNC Router Flat Table Nesting

Description

Working areas
X-Y axes dimensions mm (inches) 2556x1296 (100x51)
3756x1596 (147x62,8)
3756x1896 (147x74,6)
3156x2216 (124x87)
4356x2216 (171x87)
Axes
Vectorial speed X-Y axes "PRO-SPACE" version
m/min (ft/min)

70 (230)
Z-axis panel passage mm (inches) 150 (5,9)
Routing unit
3-4 axis motor power (up to) kW (hp) 15 (20,5)
Rotation speed (up to) rpm 24000
Available tools on tool changer (up to) positions 31
Drilling unit
Independent vertical spindles (up to) n. 16
Independent horizontal spindles (up to) n. 8
Rotation speed (up to) rpm 8000
Integrated blades (up to) n. 2
Integrated blade in X, diameter mm (inches) 125 (4,9)
