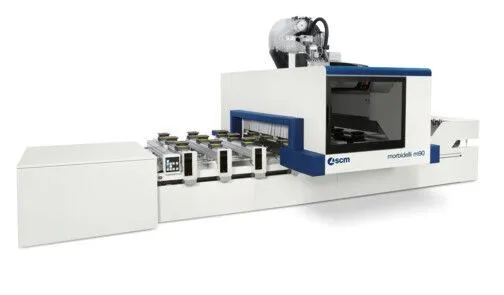

New SCM Morbidelli M90 | CNC Router Drilling Center panel processors

Description

4x10' Table, 6 TV-Flex Bars, 4 Lifters, 13HP Spindle, F23L Drill, 108m3/h pump
Technical data
Working areas
X-Y axes dimensions mm 3115 x 1320
Y-axis panel clearance mm 1600
Axes
Vectorial speed "Pro-Space" m/min 56
Z-axis panel clearance mm 180
Drilling unit
Independent vertical spindles (up to) no. 13
Independent horizonal spindles (up to) no. 10
Rotation speed (max.) rpm 8000
Integrated blade in X, diameter mm 125
Routing unit
Motor power (max.) kW (hp) (13)
Rotation speed (max.) rpm 24000

Available tools on tool changers (up to) places 25
