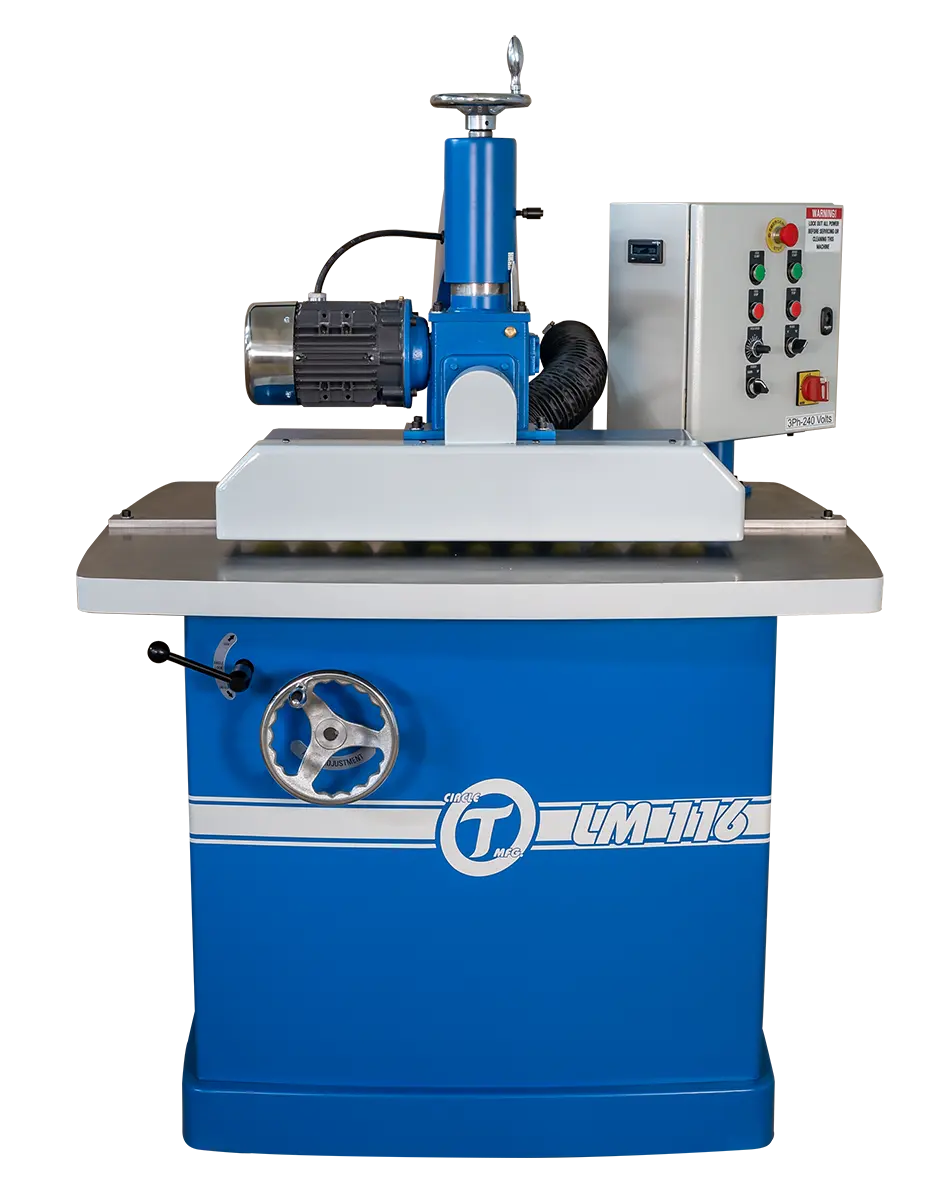

New Circle T Manufacturing LM116 Easy Lock Miter Machine | Woodworking Machinery

Description

EASY Lock Miter LM116 Details
Our Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use our machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!

A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
No more downtime setting up and changing out your shaper!!!
No more running pieces on their side!!!
Upgrade to our EASY LOCK MITER LM116
APPLICATION SPECIFICATIONS:
Maximum Material Thickness: 1″
Minimum Material Thickness: 1/2″
Minimum Material Width: 1-1/4″
Minimum Material Width (2-Sided): 2″
Minimum Material Length: 12″
Capable of Machining Angles from 90 – 30 Degrees (Finish Angle)
DRIVE PACKAGE SPECIFICATIONS:
Spindle Motor: 5 HP
Feed Motor: 0.5 HP
Spindle Diameter: 1-1/4″
Spindle Speed: 8,200 RPM
Variable Speed 11-Roll Positive Grip Feeder
UTILITY REQUIREMENTS:
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 100 PSI .5 CFM
25 AMP Disconnect at 480V 3phase
DIMENSION SPECIFICATIONS:
Table Size: 40″ x 47″
Footprint: 42″L x 54″W x 60″H
Shipping Dimensions 57″L x 48″W x 79″H
SHIPPING WEIGHT: 1400lbs
NET WEIGHT: 1250lbs

MSRP SHOWN
Contact us for best pricing and availability.
Financing available
