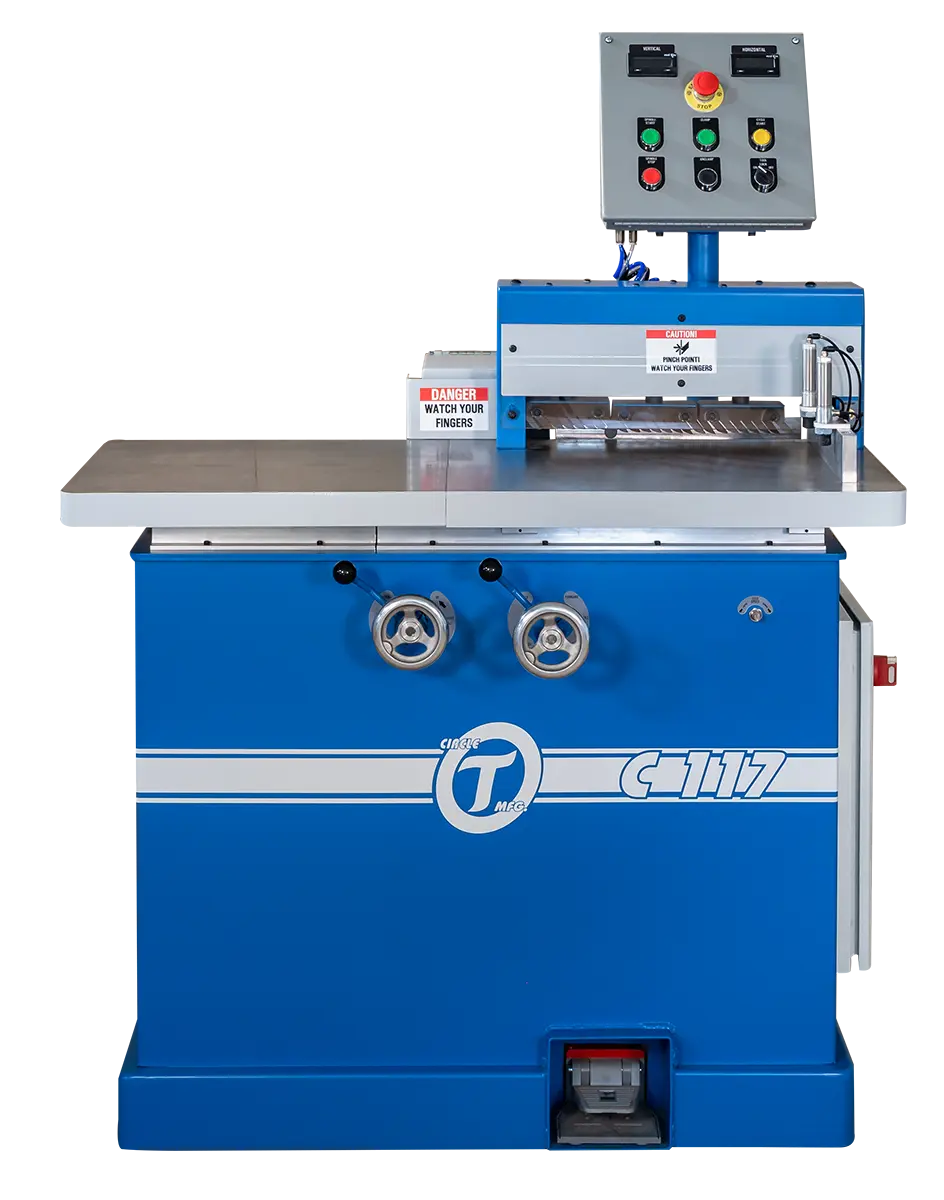

New Circle T Manufacturing C117 Easy Coping Machine | Woodworking Machinery

Description

EASY Coping Machine C117 Details

APPLICATION SPECIFICATIONS:
EASY Quick-Change Spindle INCLUDED
EASY Foot Pedal Cycle Start
EASY Backer Block Change
EASY Pneumatic Hold Down Clamp System
16” Wide Cutting Capacity
5/8” to 1” Material Thickness

DRIVE PACKAGE SPECIFICATIONS:
Main Motor: 5 H.P.
1.25” Spindle
4” Diameter Cutter Compatible
Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)
Flat Belt Drive
Y and Z Axis Spindle Adjustment with DRO

UTILITY REQUIREMENTS
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 90-100 PSI to Power Table and Clamp
25 Amp FLA @ 460v 3ph
40 Amp FLA @ 230v 3ph

DIMENSION SPECIFICATIONS:
Table Size: 44” L x 17” W
Table Height: 36”
Footprint: 46” L x 29” W x 60” H (Additional 20” needed on left side for table movement)
Working Area Footprint: 63” L x 28” W x 60” H

SHIPPING WEIGHT: 1100lbs

SHIPPING DIMENSIONS: 41”L x 48”W x 67”H

MSRP SHOWN
Contact us for best pricing and availability
Financing available
