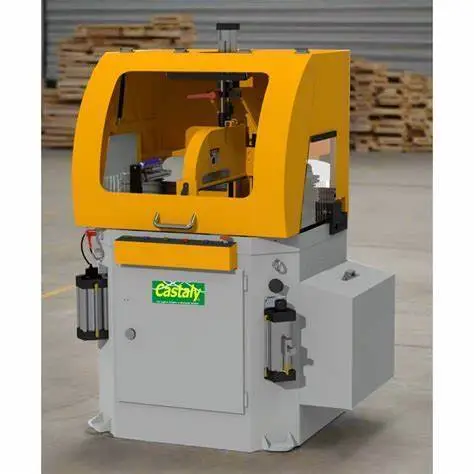

New Castaly Industries CS-20 miter saw | Woodworking Saws

Description

CS-20RL45 20” Adjustable Degrees Miter Saw $13,990.00
CS-24RL45 24” Adjustable Degrees Miter Saw $25,990.00
CS-36RL45 36” Adjustable Degrees Miter Saw $57,990.00
Optional:
• AF-08 8’ AUTO PROGRAMABLE STOPS - PUSHER $8,990.00
• RT-08 8' OUTFEED ROLLS TABLE 3 FLIP STOPS $1,399.00
• RT-8 8' INFEED ROLLS TABLE $999.00
Features:
• Adjustable maximum 45 degrees to right or left or 90 degrees angle setting for semi-automatic,
fast cutting.
• Semi-automatic by pneumatic movement cutting.
• Automatic cutting cycle simply operated by foot switch.
• Sealed long-life ball bearings.
• Full 10 HP motor for powerful cutting capacity.
• Precision ground cast iron table with heavy metal cabinet stands.
• Easy operation for furniture, lumber, door, pallet or other manufacturing.
• Clamp and guard automatically holds the lumber within cutting period and releases it after
cutting.
• Saw blade rises from under the table and returns right after cutting for safety operation
• Magnetic control with over load protection.
SPECIFICATIONS CS-20RL45 CS-24RL45 CS-36RL45
Cutting Capacity (H x W)
90 Degrees 3/4" x 11" 1" x 17" 1" x 20"
90 Degrees 2-1/8" x 6" 7-3/4" x 7-3/4" 12" x 6"
45 Degrees 1-1/2" x 12-1/2" 5" x 8" 1" x 15"
45 Degrees 1/2" x 13-1/2" 3" x 10" 12" x 4"
Designed Cutting 25 Cycles/Min 20 Cycles/Min 10 Cycles/Min
Saw Blade Diameter 20" 24" 36"
Saw Blade Arbor 1" 1" 50 mm
Saw Blade Speed 3,000 RPM 2,000 RPM 1,200 RPM
Air Pressure 90 PSI 90 PSI 90 PSI
Dust Hood 4" 4" 4"
Motor (220/440V) 7.5 HP 3PH 10 HP 3PH 10 HP 3PH
Overall Dimension (W x L) 47" x 40" 58" x 53" 67" x 62"
N.W. (LBS) 910 1700 3800
G.W. (LBS) 1200 2100 4700
(Training and installation, tooling & rigging are optional.)
(Customer is responsible for local regulations and connecting utilities)
The price is F.O.B. Los Angeles Ca. USA. Tooling, rigging, freight & sales taxes are not included.

(Price may vary, please check our website at www.lobomachine.com for the current price list)

MSRP listed
Contact us for best pricing and availability
Financing available
