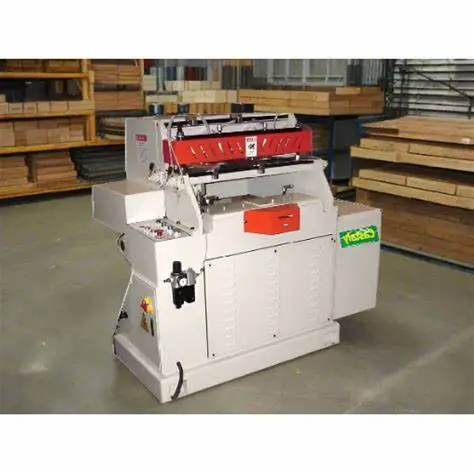

New Castaly Industries CM-A10 dovetail machine | woodworking dovetailer

Description

CM-A19 19” Single Bit Auto Dovetail Machine $11,690.00
CM-A36 36” Single Bit Auto Dovetail Machine $19,990.00
Optional:
CM-19BT-2 2 Wing Dovetail Bits $59.00
Features:
• New 2-wing knife dovetail bit (cutter) design suitable for all types of the MDF,
plywood, solid wood material for the best finish with less brow out.
• Cuts dovetailed tenons / mortises simultaneously for accurate jointing.
• Dovetailed width and depth are adjustable.
• Continuous tenoning motion.
• Automatic motion cycle provides efficient, economical operation.
• High spindle speed 20000 RPM.
• Simple to operate, simple to maintain.
• 3 feed speeds change suitable for cutting various wood materials.
• Convenient efficient operation; the machine permits for two operators' operation.
Entire motion sequences are automatically operated except for clamping and unclamping of workpieces.
• Special order for curved products.
SPECIFICATIONS CM-A19 CM-A36 CM-24AT
Main Motor 2HP 2HP 10HP
Total Cutters 1 PC 1 PC 24 PCS
Cutter Speed (RPM) 21500 21500 7500
Max. Working Length 19” 36” 24”
Dovetail Max. Thickness 25/32” 25/32” 9/16"
Dovetail Max. Width 23/32” 23/32” 9/16"
Dovetail Max. Depth 25/32” 25/32” 1-1/2"
Cutter Chuck 12mm Dia. 12mm Dia. 3/8"-24
Dust Hood 4" x 1 4" x 1 4" x 1
N.W. (LBS) 1100 1650 1700
Machine Size (L x W x H) 50” x 31” x 52” 88” x 31” x 52' 69” x 43” x 61”
The price is F.O.B. Los Angeles Ca. USA. Tooling, rigging, freight & sales taxes are not included.

(Price may vary, please check our website at www.lobomachine.com for the current price list)

MSRP listed
Contact us for best pricing and availability
Financing available
