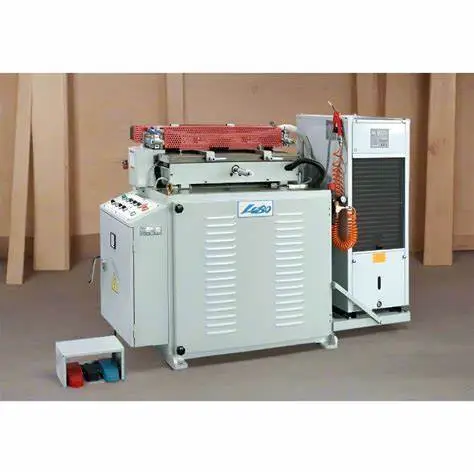

New Castaly Industries CM-16AT auto dovetail machine | woodworking dovetailer

Description

CM-16AT 16 Bits Auto Dovetail Machine (L & R Cutters) $27,990.00
CM-24AT 24 Bits Auto Dovetail Machine (L & R Cutters) $33,990.00
Options:
• 2 Wing Cutter for 16 or 24AT (left or Right) $49.00 each
For protect the tear out on Plywood
Material Surface
• Replaceable HUMW Backup Holder
$580.00
• CM-16AT-L with all LEFT-HAND
Cutters $33,990.00
• CM-24AT-L with all LEFT-HAND
Cutters $39,990.00
Features:
• Suitable for MDF, hard or soft wood products.
• Making max. 24" wide male and female dovetail at one automatic stroke for mass production.
• Linear bearing guide for the smooth movement at high speed stroke.
• Unique design variable speed of air hydraulic system for even cutting feed pressure to achieve fine finish.
• Auto gearbox cooling system for 24-hour a day working capacity.
• Pneumatic clamps and powerful industrial motor for max. cutting effects.
• Foot pedal controls automatic clamps and cutting cycle.
• Heavy steel frame and cast iron table for long durability of usage.
• Easy micro adjustment for match of the dovetail tightness.
SPECIFICATIONS: CM-16AT CM-24AT CM-A19
Main Motor 7½ HP 10 HP 2 HP
Cutter Spindle 16 PCS 24 PCS 1 PC
Spindle Rotation (RPM) 7500 7500 21500
Dovetail Max. Thickness 9/16" 9/16" 2-3/8"
Dovetail Max. Width 9/16" 9/16" 1-1/16"
Dovetail Max. Depth 1-1/2" 1-1/2" 1-3/16"
Cutter Chuck 3/8"-24 3/8"-24 12mm Dia.
Dust Hood 4" 4" 4"
N.W. (LBS) 1600 1700 2260
G.W. (LBS) 1800 1980 2540
(Training and installation, tooling & rigging are optional)
(Customer is responsible for local regulations and connecting utilities)
The price is F.O.B. Los Angeles Ca. USA. Tooling, rigging, freight & sales taxes are not included.
(Price may vary, please check our website at www.lobomachine.com for the current price list)

MSRP listed
Contact us for best pricing and availability
Financing available
