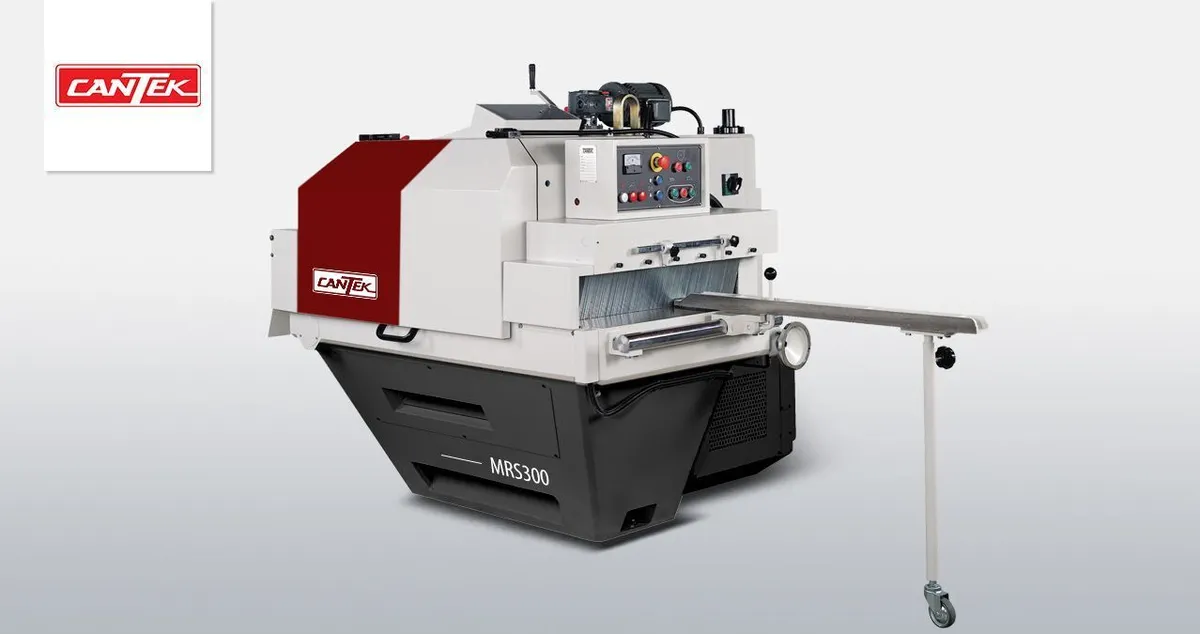

New CANTEK AMERICA MRS300 Multi Ripsaw | Woodworking Saws

Description

• Industrial cast iron construction for superior vibration damping and optimum cut quality and machine life.
• Precision cast iron chain and track assembly ensure precise straight-line ripping.
• 12" useable arbour length with saw sleeve system allowing for faster setups when additional sleeves are used.
• High precision Nickel chrome steel saw arbour with 70 mm diameter and double keys.
• Extended cast iron infeed fence to aid the operator in feeding boards.
• Straight-line caterpillar feeding with heavy guided chain.
• Precision extended cast iron rip fence runs on large diameter fence bar for quick rip fence adjustment.
• Automatic centralized lubrication system for lubricating the chain and race assembly, ensuring long life and precision.
• Automatic Star-Delta starter (slow speed start) to the main motor and low voltage controls.
• (3) sets of Anti-Kickback Fingers: (2) top + (1) bottom for operator safety.
• Powered Rise & Fall to the pressure rollers allow for quick thickness adjustment.
• CE style European guard & safety features.
• Optional quick setting collars eliminate the need for spacers that allow for fast changeovers between desired ripping widths.
• Optional laser projection lights.
• Optional short stock attachment allowing for ripping lengths down to 11.8".
• Sawblades are not included.

Maximum Working Thickness:
14" Blade – With optional short stock attachment 3.74" 95mm
14" Blade – Without short stock attachment 4.33" 110mm
15" Blade – Without short stock attachment 4.72" 120mm
Minimum Length – without short stock attachment 23" 585mm
Minimum Length – with short stock attachment 11.8" 300mm
Maximum cutting width 11.8" 300mm
Distance from column to center of chain 14.17" 360mm
Sawblade diameter 8" to 15" 203 to 380mm
Saw arbor sleeve diameter (Blade bore) 70 mm w/ keyways
Saw arbor diameter 50 mm
Saw arbor speed 3800 RPM
Saw motor HP 50 HP
Thickness setting motor ½ HP motor
Feed speeds 25 – 100 FPM 7.5~30 m/min
Feed motor HP 2 HP
Dust hood diameter 2 @ 6” = 1800 CFM 2 & 150mm = 1800 CFM
Table size 60″ x 30” 1530x760mm
Table height from floor 33.5″ 851mm
Net weight 4510 lbs 2050 kgs
Shipping weight 5060 lbs 2300 kgs
Machine dimensions 82.68” 59” x 56 ½” 2100x1500x1435mm
Shipping dimensions 70.87” x 66.93” x 63″ 1800x1700x1600mm
Electrics 460/3/60 = 69.5 amps
575/3/60 = 56 amps

Optional: Rubber Infeed Chain
Replaceable Inset Rubber Chain for non-marking applications run on precision machined cast iron feed rails with FC35 hardness for extra longevity and accuracy.
Factory order with 12-14 week lead time
Complete | Price: $2,000.00

Optional: Rubber Covered Outfeed Rollers
Rubber outfeed rollers (3) in lieu of steel rollers.
Complete | Price: $350.00

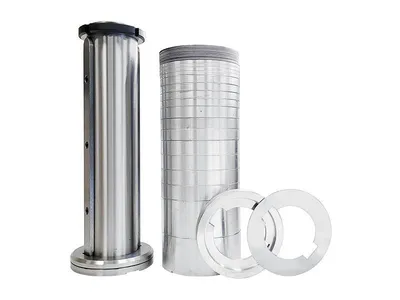

Optional: Additional Saw Sleeve and Spacer Set
The machine comes with one complete removable saw sleeve and set of (38) spacers. Additional sets can be purchased to speed up blade changeover.
Saw Sleeve: CANMRS300A-SLEEVE | Price: $865.00
Spacer Set: CANMRS300A-SPACERSET | Price: $460.00

Optional: Short Stock Attachment
For running short material in Length to a minimum of 11.8" long. Unit consists of wooden pressure plate (1) and spring-loaded bracket assembly.
Part Number: CANMRS300A-SHT-STK | Price: $620.00

Optional: Quick Change Single Blade Mechanical Locking Collars
The optional quick-change locking collar allows you to fix a blade anywhere on the saw sleeve without the need for spacers. The collars use a pressure pin turned by an alum key to lock on the keys on the saw sleeve. Note:
Part Number: CANMRS300-AM36-045-0 | Price: $290.00 each

Optional: Single Laser & Holder
Projection laser line to show the cutting line. It consists of (1) 20MW laser light and (1) holder & 6" mounting stand. Requires bolting to saw housing.
Laser Part #: FPIMLC1320WFL | Price: $595.00
Base & Holder #: FPIMBN03-XF8000 | Price: $250.00

MSRP shown, Contact us for availability and best price
Financing available at competitive rates
